deHavilland Low Speed Wind Tunnel
University of Glasgow

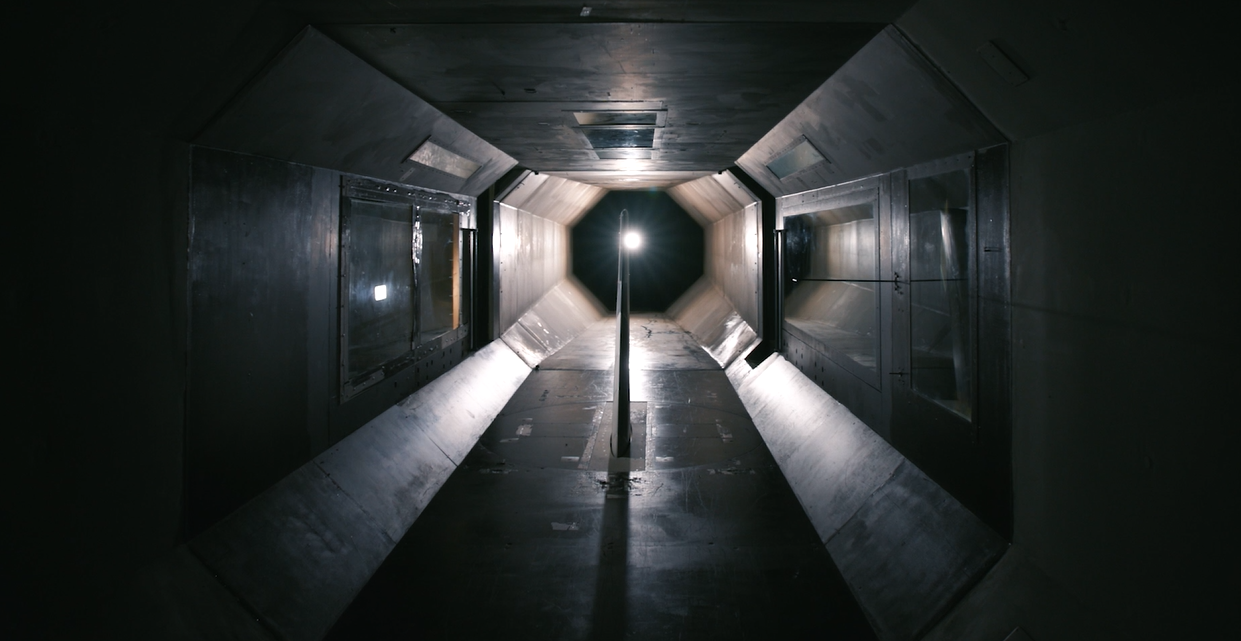

The University of Glasgow de Havilland wind tunnel has a test section of 2.74 m x 2.1 m x 5 m. It has a platform 6-axes load cell beneath working section, and various capacity load cells. Data Acquisition: 192 channel simultaneous data acquisition (16 bit) at up to 500kHz. 64 channel simultaneous data acquisition (24 bit) at up to 128kHz. Outputs: Forces & moments, pressure, velocity (Stereo PIV for high resolution over large area – up to 1m x 1m).
- Test Section 1 size:
- 2.74m x 2.1m x 5m
5:1 contraction ratio. - Test Section 2 (Return) size:
- N/A
- Operational Status:
- Active
- Number and Type of Staff:
- Scientific: 2
Technical Support: 5+ - Test support:
- Workshop for wind tunnel model design,
manufacture and modification capability.
- Designation:
- Low Speed
- Performance:
-
Mach Number: 0.2 (max)
Maximum Flow Speed: 70 m/s
Reynolds No: 4x10⁶/m (max)
Total Pressure: 1 bar
Pressure: Up to 2.94 kN/m²
Temperature: Ambient to 300K
Turbulence intensity: <0.2%
Run Time: Continuous
Typical Recharge Time: n/a.
- Testing Capabilities:
-

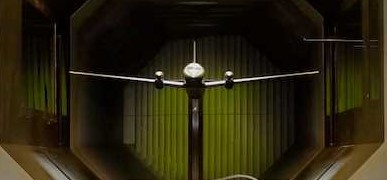

Model Support: platform load cell beneath
working section, and various capacity load cells
Rolling Road: n/a
Data Acquisition: 192 channel simultaneous
data acquisition (16 bit) at up to 500kHz.
64 channel simultaneous data acquisition (24
bit) at up to 128kHz.
Outputs: Forces & moments, pressure, velocity (Stereo PIV for high resolution over large area – up to 1m x 1m)
Flow visualisation: Smoke, video, surface fluorescent oilflow.
- Specialist Rigs:
- Dynamic stall
Rotor rigs have been developed and used in this tunnel
Sting support system - Equipment:
- 6-component balance, sting and positioning system
Data acquisition system
Pressure scanning system
High-speed stereo PIV system
LDA system
Hot-wire system (Dantec)
High-speed camera system
Pressure sensitive paint
